Description
| MAIN FEACTURES |

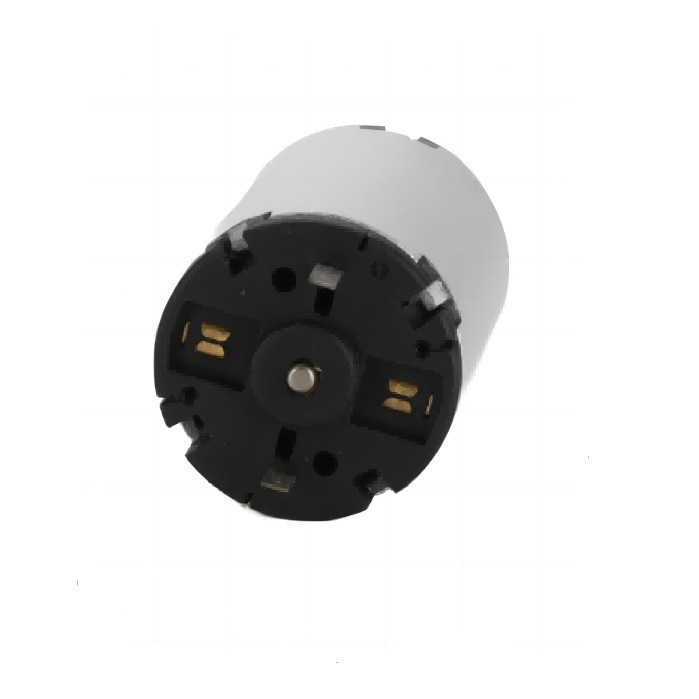

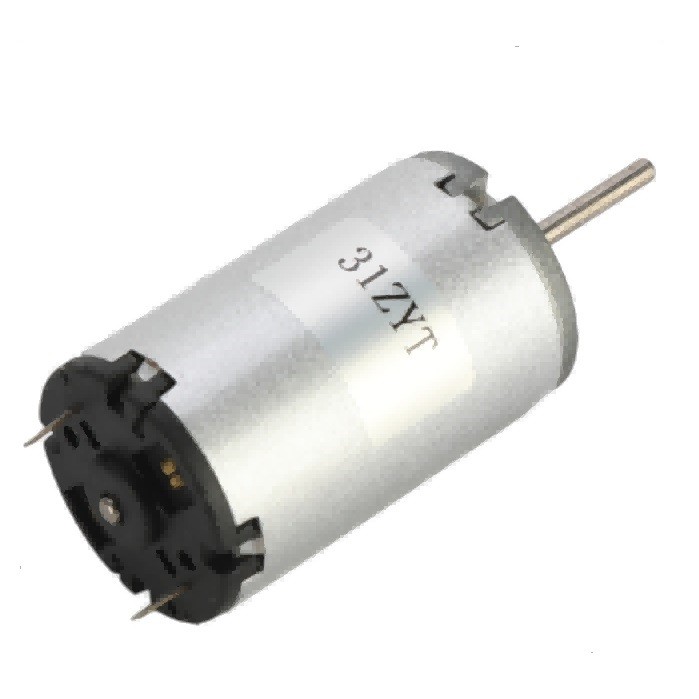

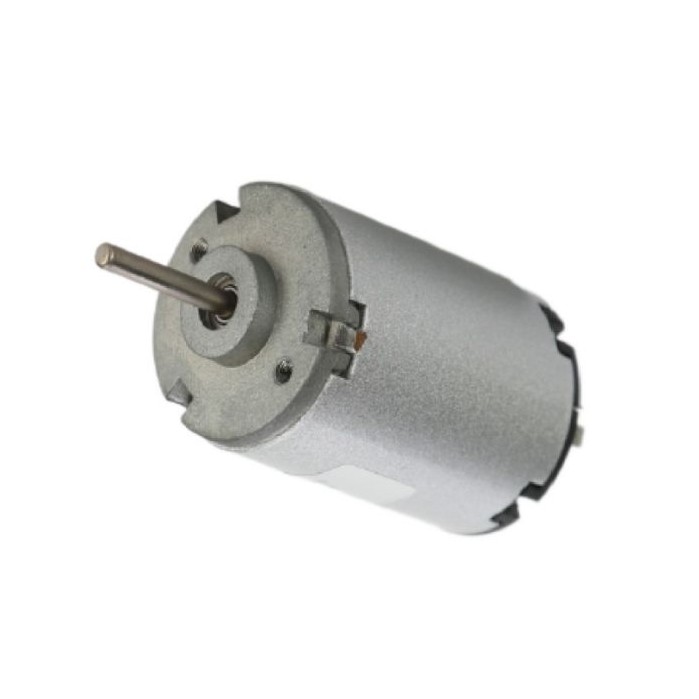

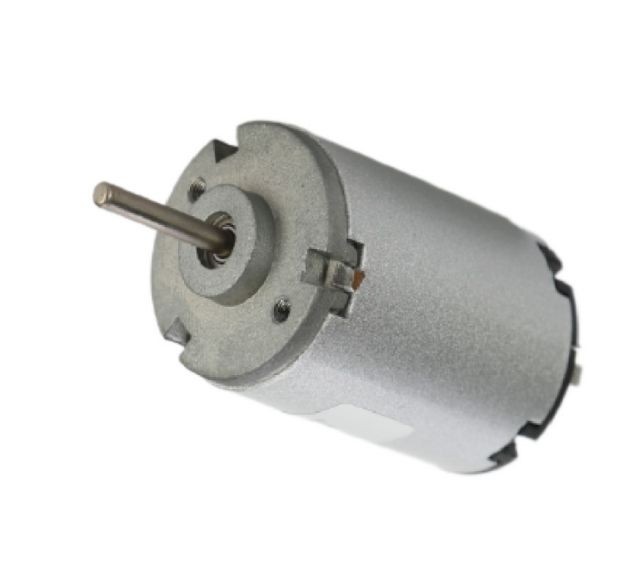

12V 24V 31ZYT PMDC Motors Brushed
High torque, small size, longer lifetime
Size, voltage, speed, torque and shaft etc. can be customized
Widely used in industry, medical, farming, home appliance and smart products etc.
| DIMENSION |
| TECHNICAL DATA |
| MODEL | RATED VOLTAGE | NO-LOAD SPEED | NOLOAD CURRENT | RATED SPEED | RATED CURRENT | RATED TORQUE | RATED POWER |
|
MC3151-RH477-15145-25S |
24V | 3500RPM | 0.08A |
3098RPM |
0.21A | 10mN.m | 3.2W |
|
MC3151-RH477-17154-25S |
24V | 4500RPM | 0.13A |
4000RPM |
0.28A | 10mN.m | 4.2W |
|
MC3151-RH477-2170-25S |
12V | 4700RPM | 0.14A | 3150RPM | 0.45A | 10mM.m | 3.3W |
|
MC3151-RH477-3328-25S |
12V | 9000RPM | 0.42A | 7500RPM | 2.2A | 23mN.m | 18.1W |
