6VDC 6.4N 10mm Stroke Small Linear Actuators For Dish-washing Machine

  • Product Item：LA-M-B
  • Voltage: 6V,12V, 24V
  • Speed: 5-150mm/s (Customized)
  • Maximum Load: 6.4-188N
  • Stroke: 10-150mm
    • small actuators  , electric actuator for teller machin  , linear actuators  , 6v actuator  , 96N actuators
    Inquiry Send Email

    Description

    MAIN FEATURES
    Voltage: 6V/12V/24V
    Stroke: from 10mm to 150mm stroke

    Maximum load: from 6.4N to 188N
    No-load speed: from 5mm/s to 150mm/s

    MAIN APPLICATIONS
    widely used in teller machines, robot arm, TV standard and dish-washing machines...


    TECHNICAL DATA
    MODEL VOLTAGE SPEED MAXIMUM LOAD STROKE OPERATION TEMPERATURE DUTY CYCLE IP RATING LIMIT SWITCHES
    LA-M-B
    		 12V/24V/6V
    		 5-150mm/s 6.4-188N 10-150mm -10℃~+50℃ 10% IP54 Built-in Limit Switch

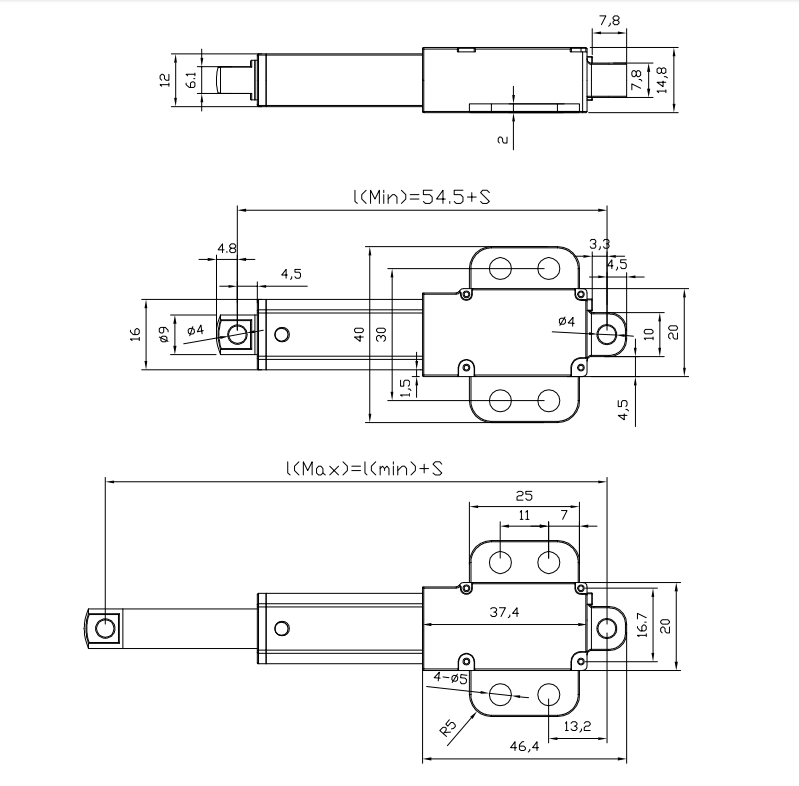

    INSTALLATION DIMENSION

    PUSH ROD FITTING
