Description
| MAIN FEACTURES |

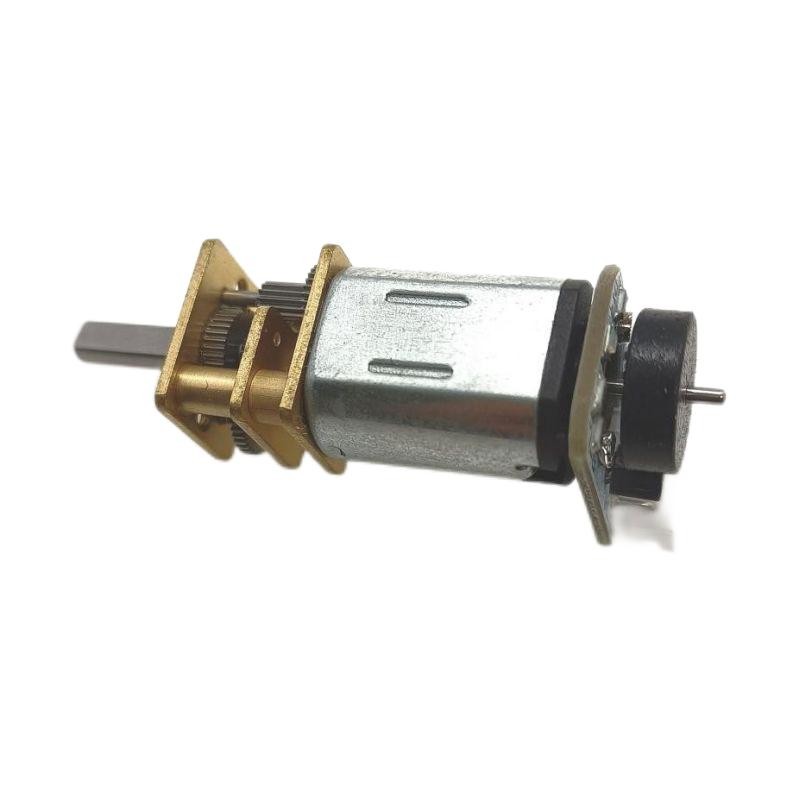

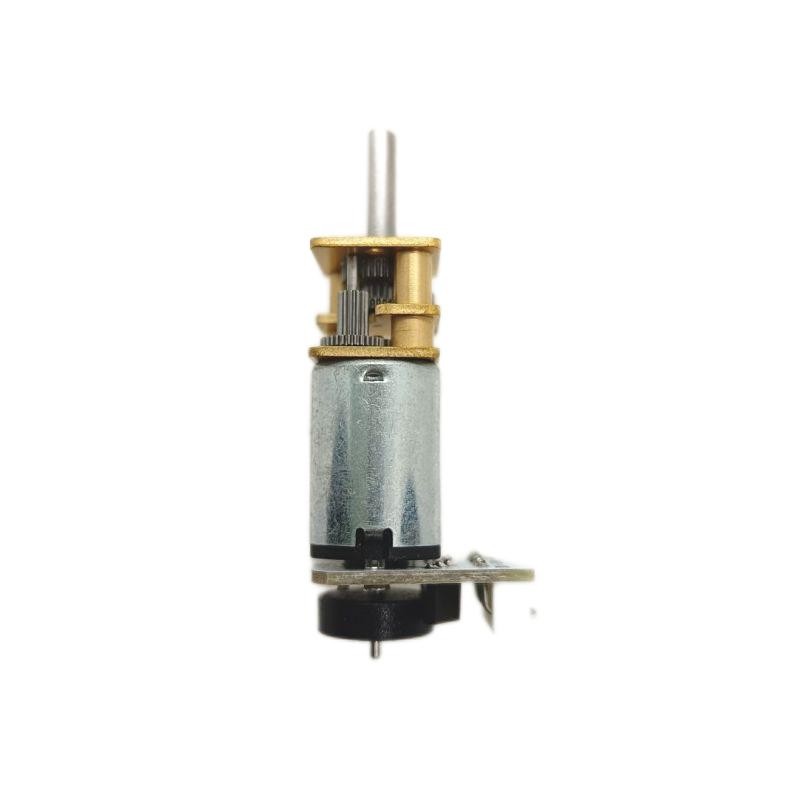

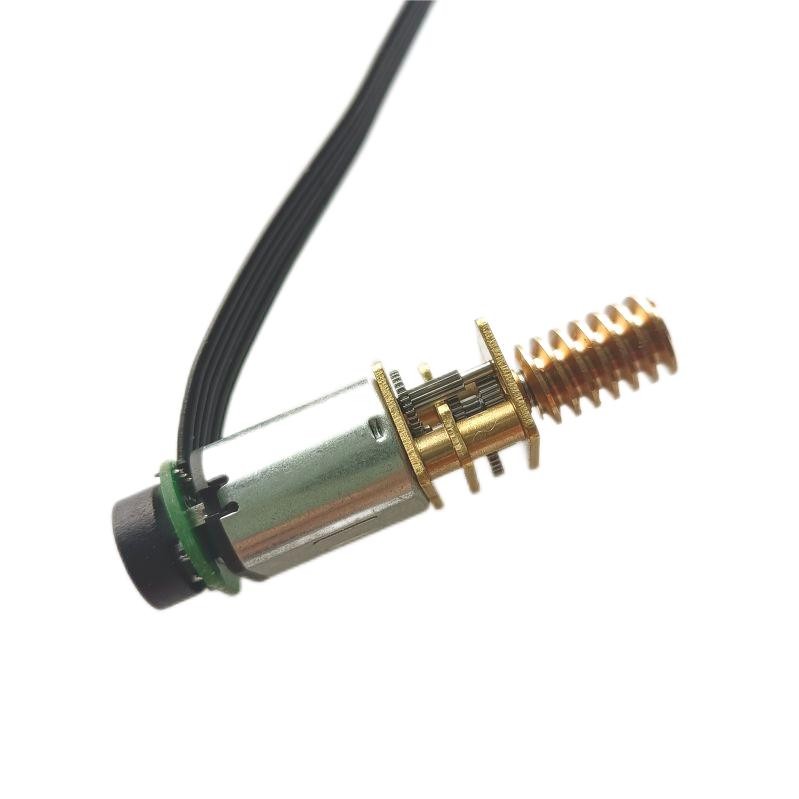

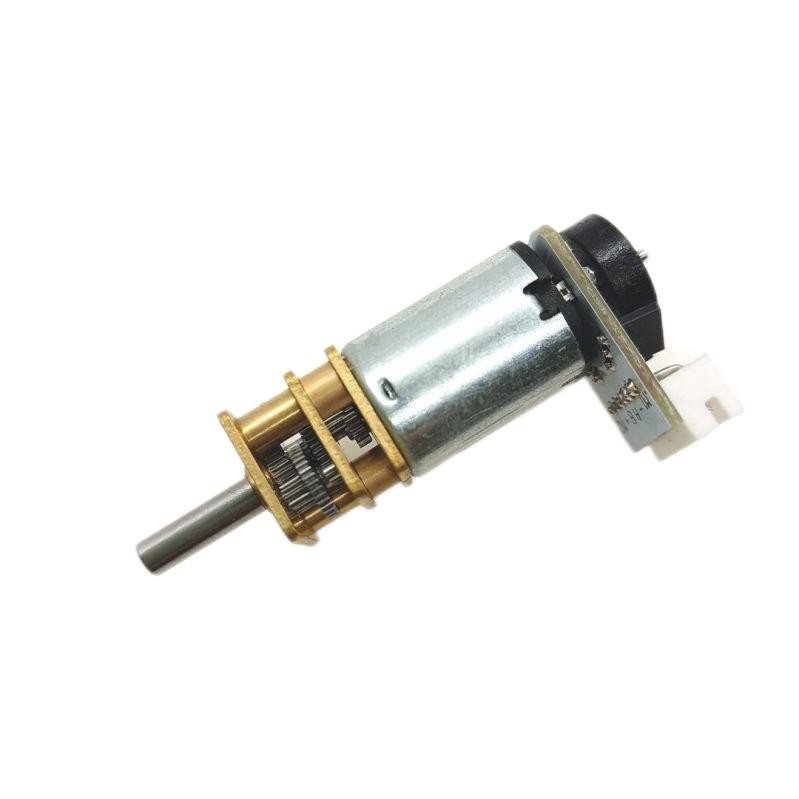

N20 mini gear motor with encoder of 7PPR or 12PPR, low rpm and high torque, longer lifetime and lower noise, widely used in home appliance, smart equipments, medical and industry etc.
Voltage, speed, torque and shaft and so on can be customized.

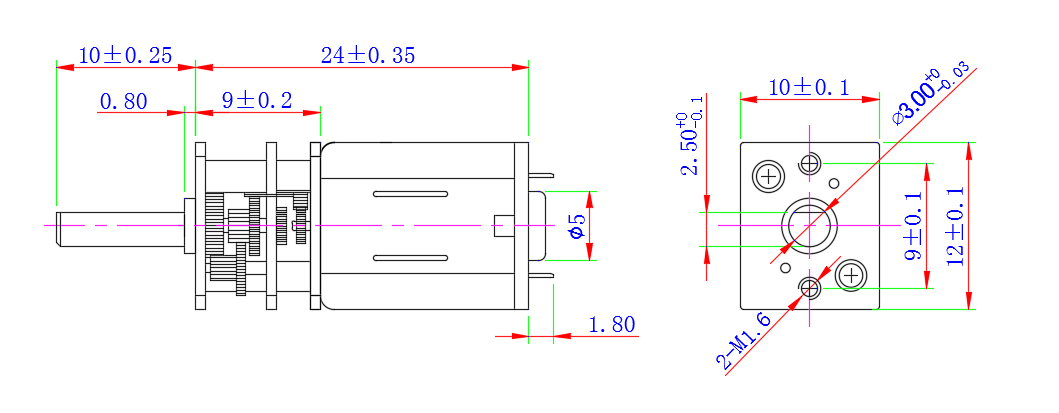

| DIMENSION |
| TECHNICAL DATA |
| MODEL | VOLTAGE | NO-LOAD SPEED | NO-LOAD CURRENT | POWER | STALL TORQUE | STALL CURRENT |
|
MC12F-N20VA-08260 |
5.0V | 1440RPM-14RPM | 50mA | 0.3W | 110gf.cm-1.2kgf.cm | 0.5A |
|
MC12F-N20VA-10190 |
3.0V | 1200RPM-12RPM | 55mA | 0.2W | 94gf.cm-9.95kgf.cm | 0.55A |
|
MC12F-N20VA-13115 |
2.4V | 1460RPM-15RPM | 45mA | 0.3W | 128gf.cm-1.3kgf.cm | 0.95A |
