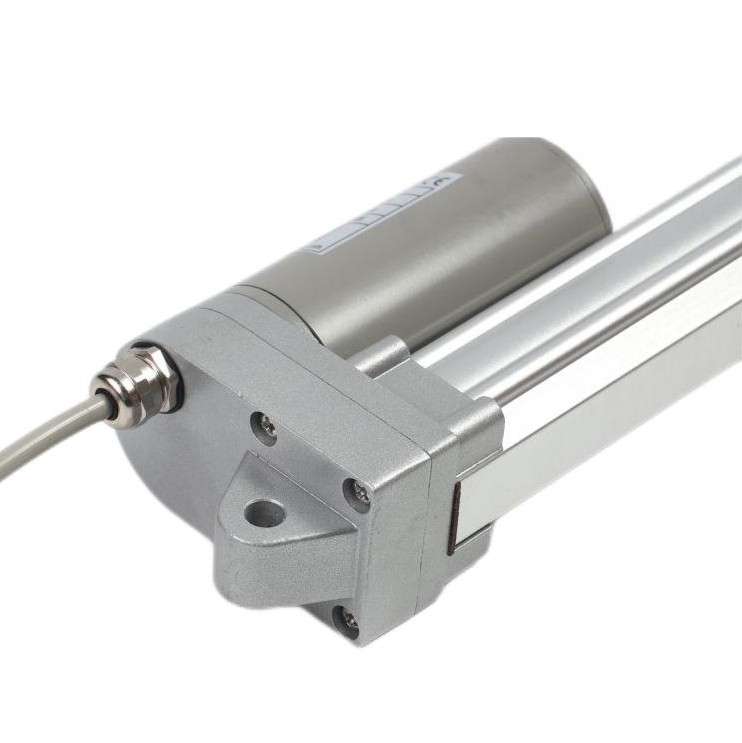

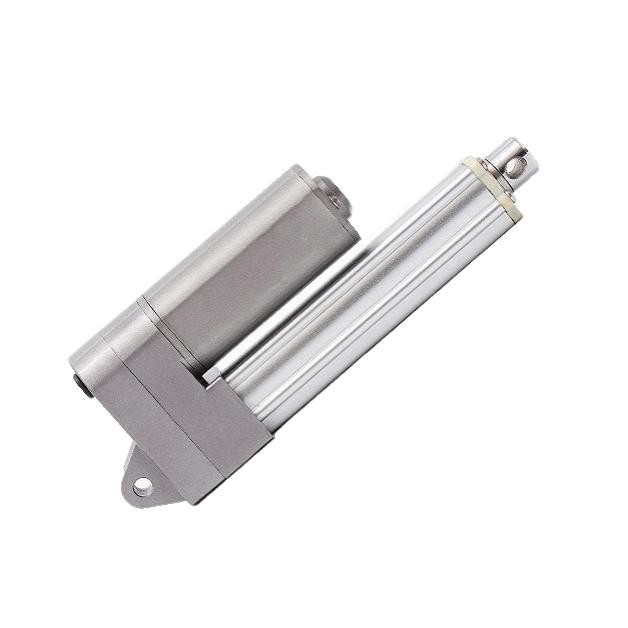

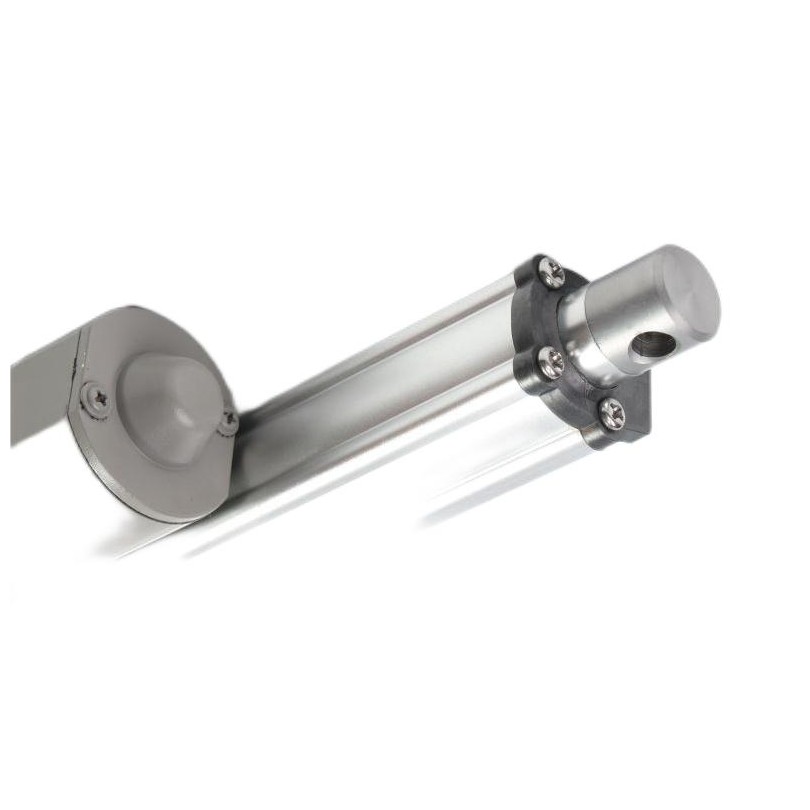

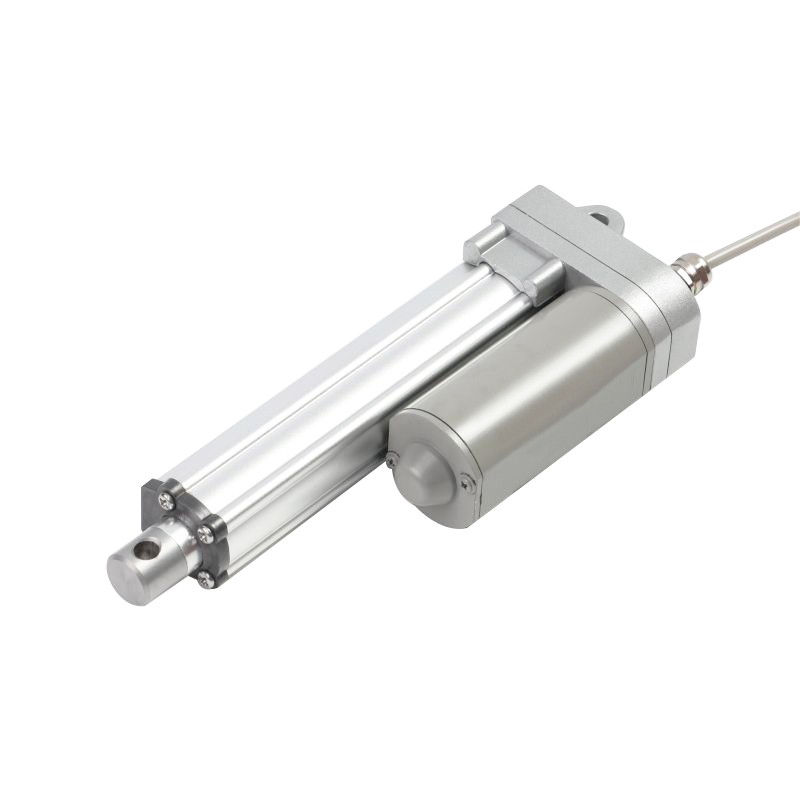

2000N 12V Linear Actuator Electric For Medical Use

Description

MAIN FEATURES

50mm Stroke 2000N Actuator For Medical Use

Quiet, powerful and compact push rod,
suitable for various indoor and outdoor applications,

widely used in medical devices,furniture, environmental protection equipment, etc.

Adapter, controller and power supply are also available as per customized requirements.

MAIN APPLICATIONS

Furniture Applications
Environmental Equippment
Medical Device

Robots

TECHNICAL DATA

MODEL	INPUT VOLTAGE	SPEED	MAXIMUM LOAD	STROKE	OPERATION TEMPERATURE	DUTY CYCLE	IP RATING	LIMIT SWITCHES
MC8-523	12V/24V/36V/48V	5/10/15mm/s	2000N	50-600mm	-25℃~+60℃	25%	IP65	Built-in Limit Switch

Voltage, speed, stroke, load and mounting distance can be customized.

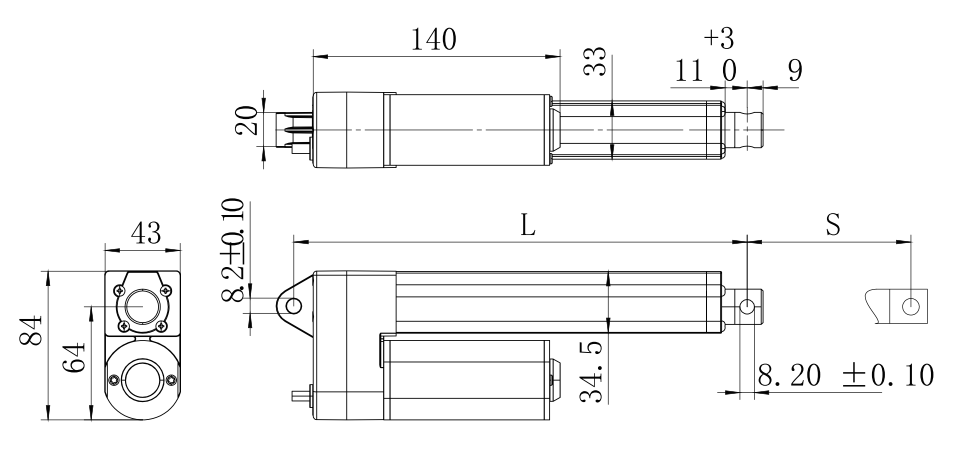

DIMENSION

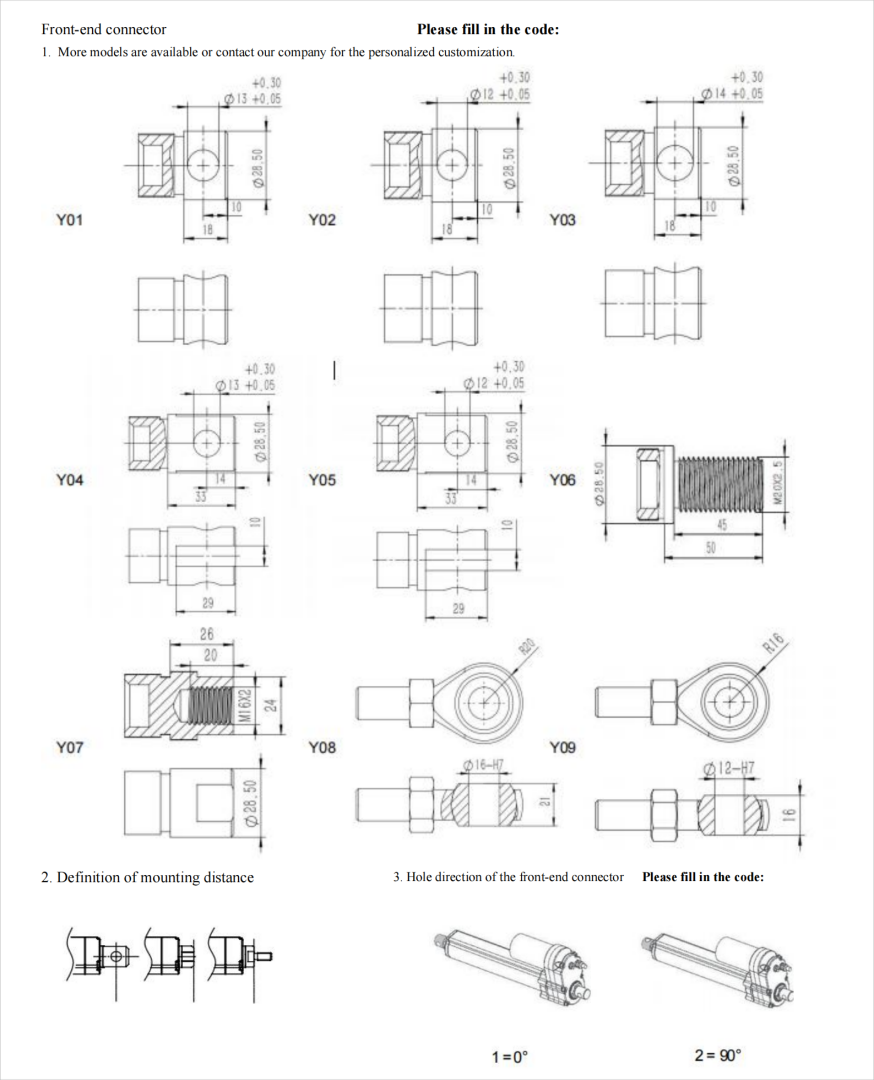

FRONT-END CONNECTOR

TAIL-END CONNECTOR
