12V DC Linear Actuator 30mm Stroke 10mm/s Speed 60N Rated Torque For TV stand

  • Product Item：MA-S
  • Voltage: 12V/ 24V
  • Speed: 10mm/s (Customized)
  • Rated Load: 60N
  • Stroke: 30mm
    • small actuators  , electric actuator for TV stand  , linear actuator  , 12v actuators  , 90N push rod
    Inquiry Send Email

    Description

    MAIN FEATURES
    Voltage: 12V/24V
    Stroke: 30mm

    Rated load: 60N
    No-load speed: 10mm/s

    MAIN APPLICATIONS
    widely used in teller machines, robot arm, TV standard and dish-washing machines...


    TECHNICAL DATA
    MODEL VOLTAGE SPEED RATED LOAD STROKE OPERATION TEMPERATURE DUTY CYCLE IP RATING LIMIT SWITCHES
    MA-S
    		 12V/24V
    		 10mm/s 60N 30mm -10℃~+50℃ 10% IP54 Built-in Limit Switch

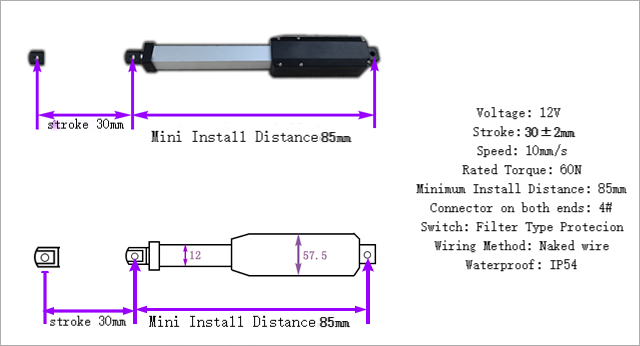

    INSTALLATION DIMENSION

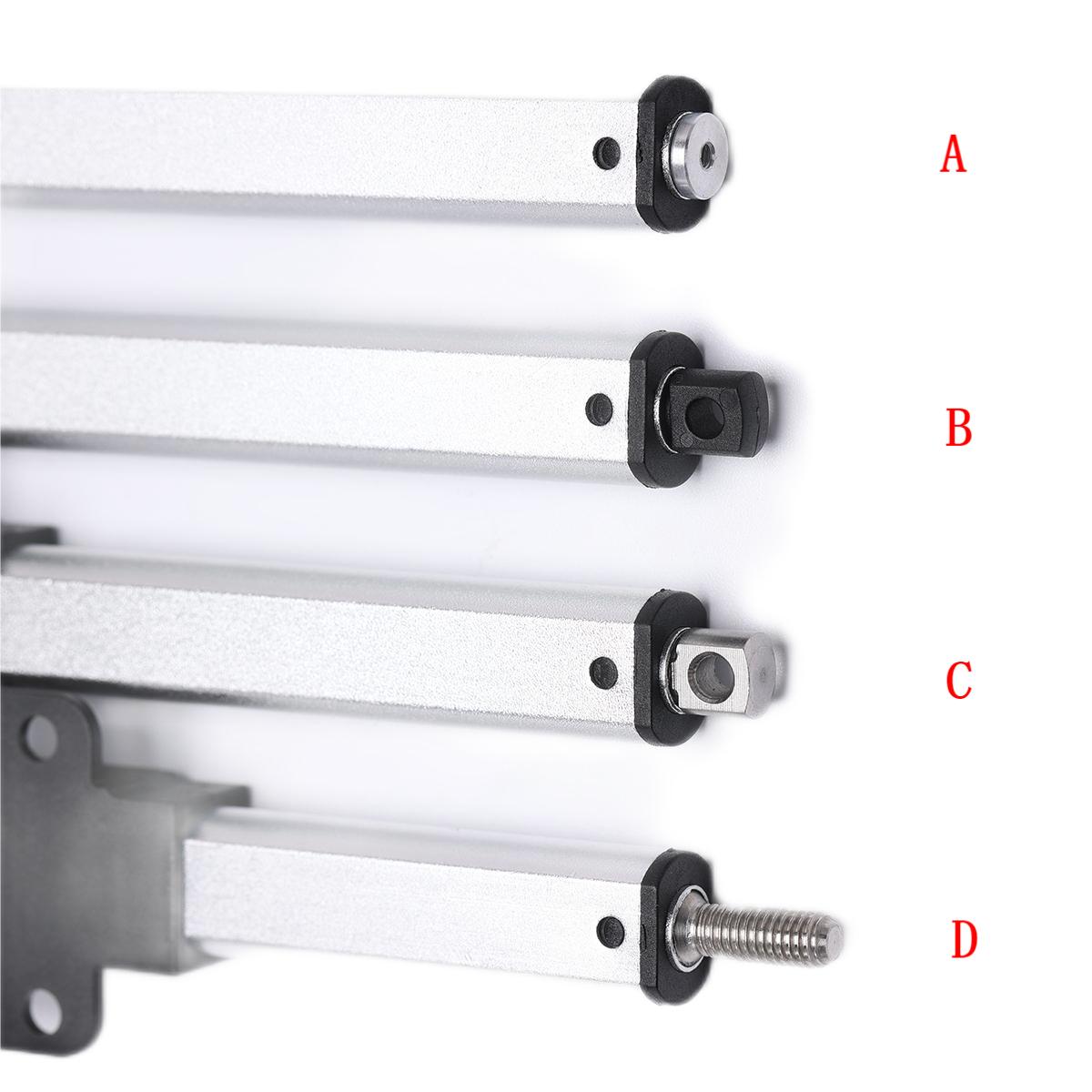

    PUSH ROD FITTING
