Description
| MAIN FEACTURES |

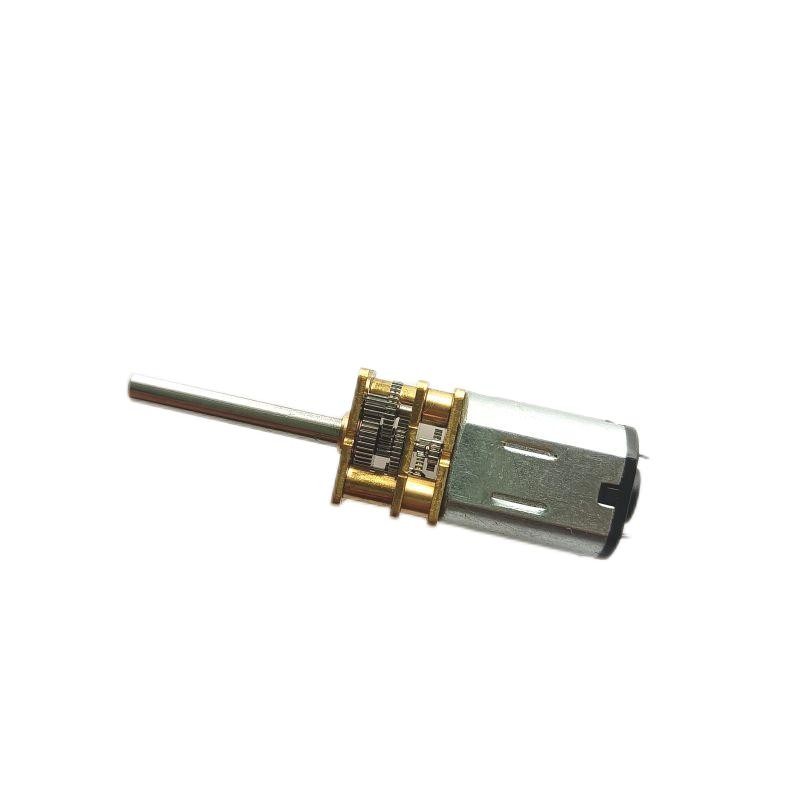

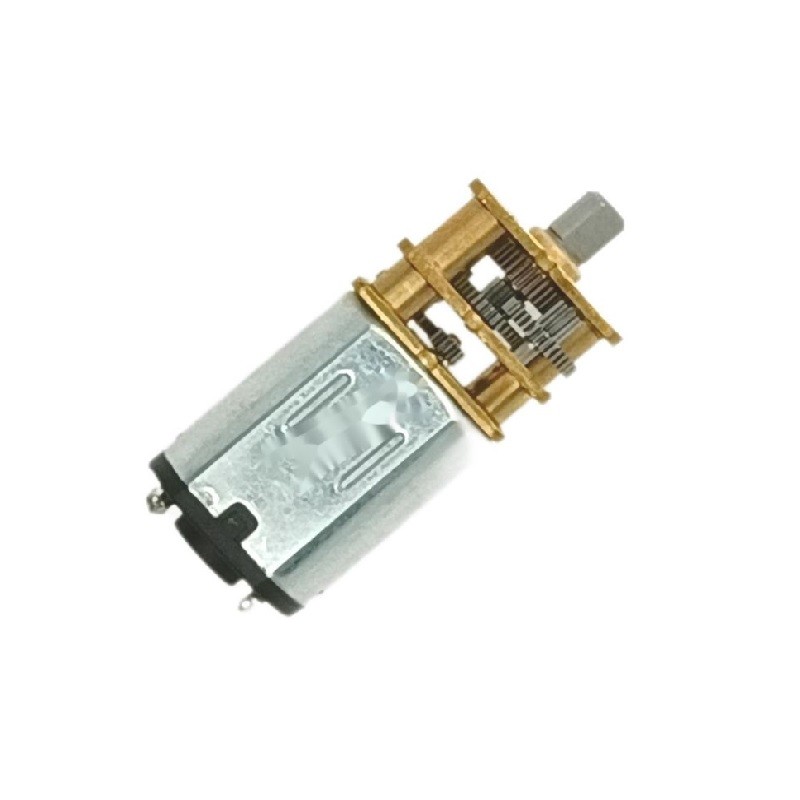

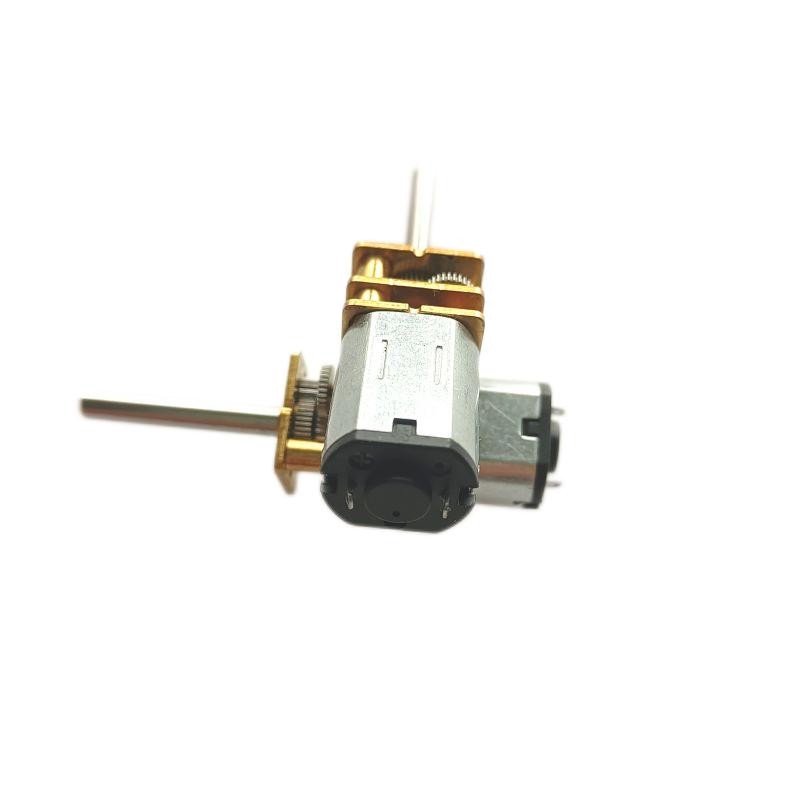

N20 micro gear motor, with low rpm and high torque, has longer lifetime and lower noise, widely used in home appliance, smart equipments, medical and industry etc. 3V-12V is available
| DIMENSION |
| TECHNICAL DATA |
| MODEL | VOLTAGE | NO-LOAD SPEED | NO-LOAD CURRENT | POWER | STALL TORQUE | STALL CURRENT |
|
MC12F-N20VA-08260 |
5.0V | 1440RPM-14RPM | 50mA | 0.3W | 110gf.cm-1.2kgf.cm | 0.5A |
|
MC12F-N20VA-10190 |
3.0V | 1200RPM-12RPM | 55mA | 0.2W | 94gf.cm-9.95kgf.cm | 0.55A |
|
MC12F-N20VA-13115 |
2.4V | 1460RPM-15RPM | 45mA | 0.3W | 128gf.cm-1.3kgf.cm | 0.95A |
