Description
| MAIN FEACTURES |

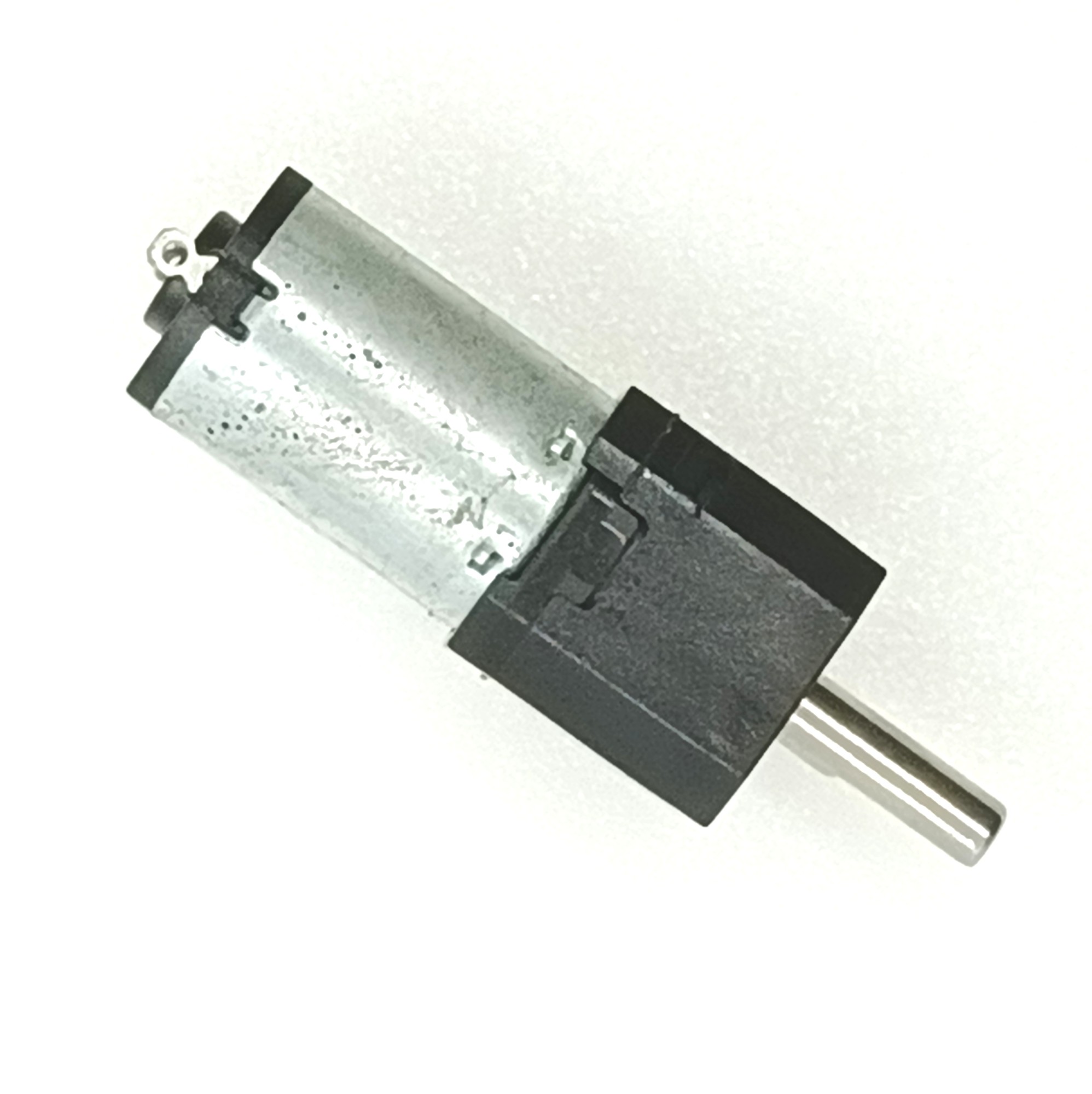

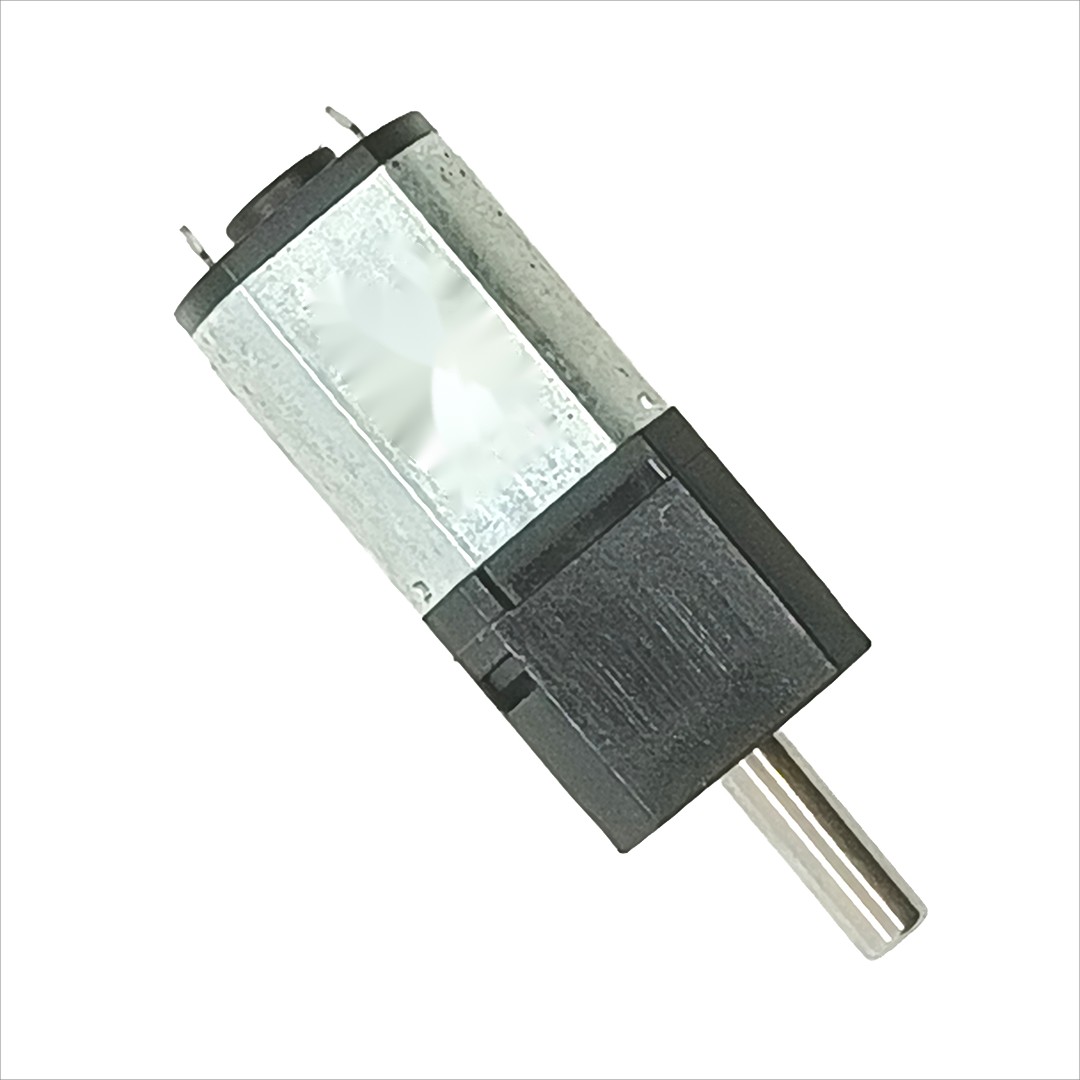

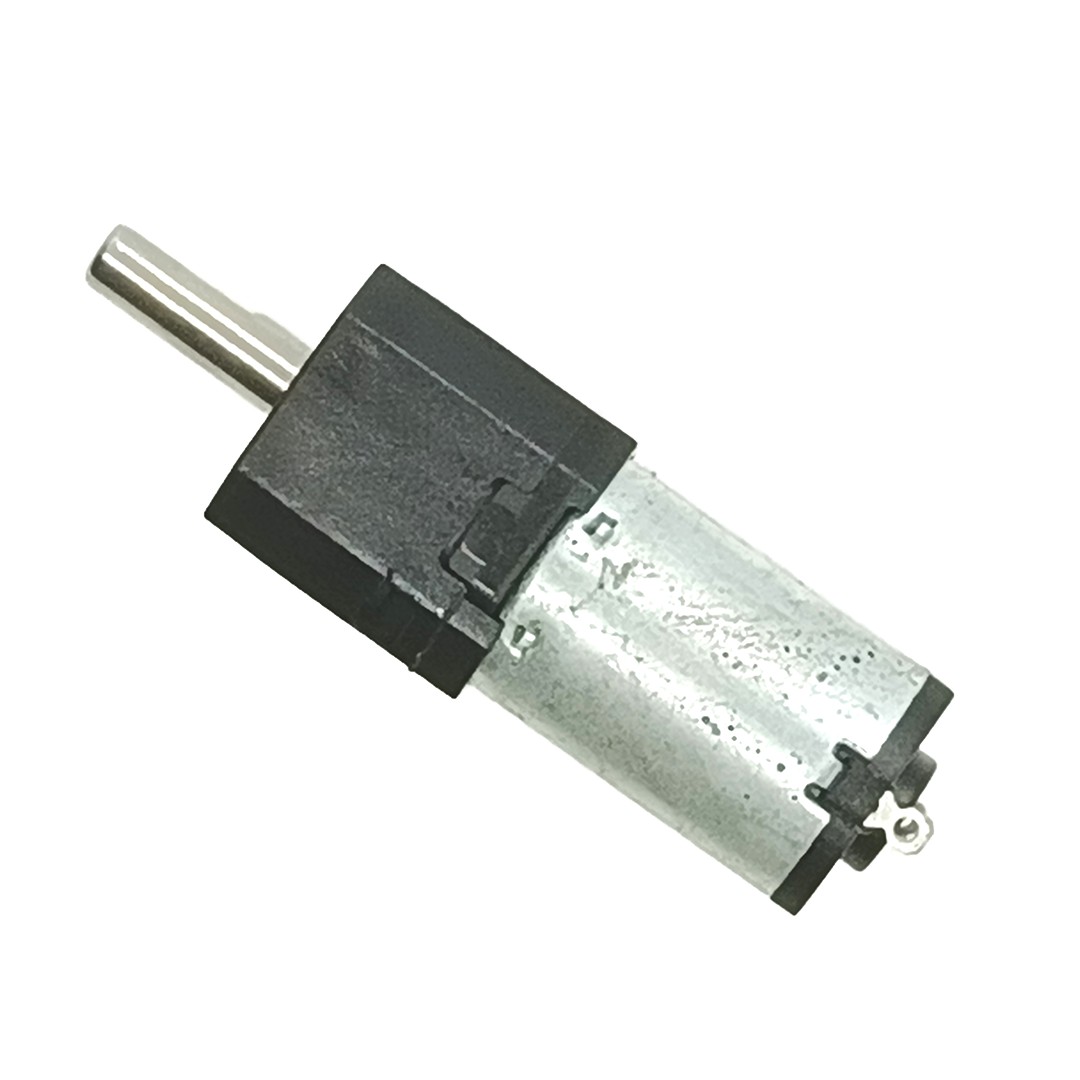

3V-12V N20 planetary gear motors
DC planetary gear motor plastic gearbox
Lower noise longer lifetime in wide usage
Size, voltage, speed, torque and shaft etc. can be customized

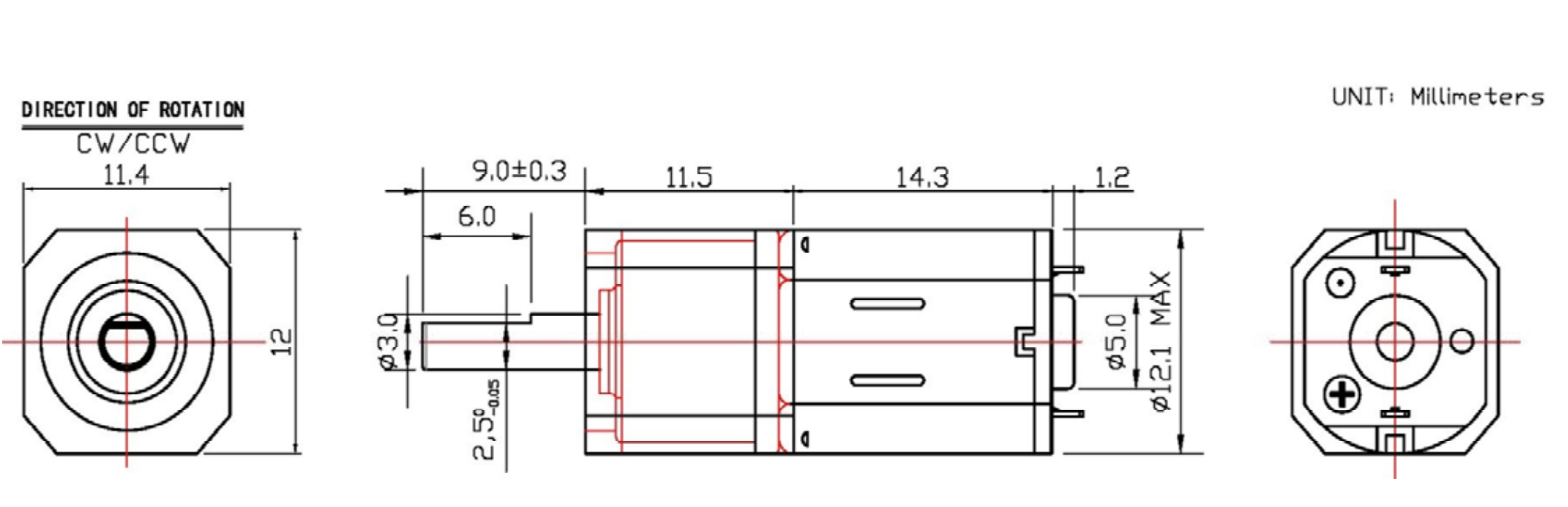

| DIMENSION |
| TECHNICAL DATA |
| MODEL | VOLTAGE | NO-LOAD SPEED | NO-LOAD CURRENT | POWER | STALL TORQUE | STALL CURRENT |
|
MC12F-N20VA-08260 |
5.0V | 45RPM | 50mA | 0.3W3.5 | 3.5kgf.cm | 0.5A |
|
MC12F-N20VA-10190 |
3.0V | 37RPM | 55mA | 0.2W | 3.0kgf.cm | 0.55A |
|
MC12F-N20VA-13115 |
2.4V | 46RPM | 45mA | 0.3W | 4.0kgf.cm | 0.95A |
